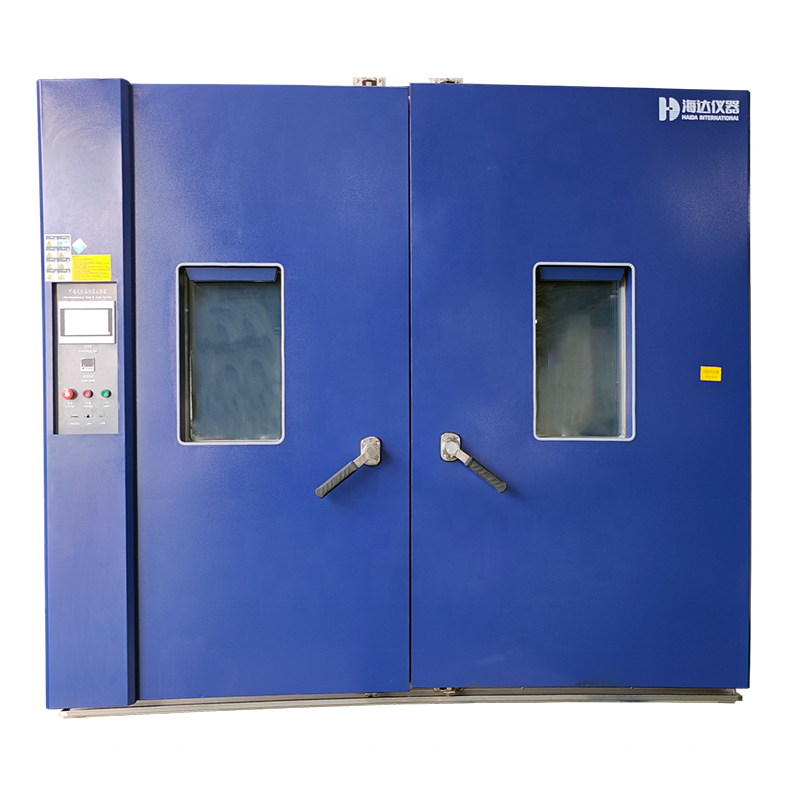

Hot Spot Endurance Testing Chamber / BBA Steady Sun Simulator
HD-E905
This machine provides a near-natural light source within a specified area, featuring BBA-class light sources. It is primarily used for large-area PV module aging testing.
Specifications
| Light Source |
4 pieces, lamps imported from Germany
(The light source is a core component and also a consumable) |
| Radiation Intensity |
800–1200 W/m² (adjustable)
(Single light source system can provide real-time signal output to the collector) |
| Wave Band |
400–1200 nm |
| Spectral Matching Degree |
Class B |
| Irradiation Inhomogeneity |
Class B |
| Instabilities |
Class A |
| Radiation Area |
2.4 m × 1.4 m for 4 light sources to place 1 PV module |
| Light Source Hang System |
Upper hang method: main frame uses high-strength, easily movable aluminum profile structure. Space between lamps is adjustable. After debugging, light source distance from PV module is approximately 1.5 m. |
| Light Method |
Upper light, facilitating easy placement of PV modules |
Irradiation Introduction
The sensor operates on the thermoelectric effect principle. Sensing components use winding plated multi-contact thermopiles with surfaces coated in a high-absorptivity black coating. Hot junctions are on the sensing surface, while cold nodes are located in the inner chamber. Temperature difference potential between cold and hot junctions produces an output signal proportional to solar irradiance within the linear range. A temperature compensation circuit minimizes temperature effects. Two-layer quartz glass covers, produced via precision optical cold process grinding, protect against environmental influences.
| Sensitivity |
7–14 μV/W/m² |
| Response Time |
≤30 s (99%) |
| Inner Resistance |
Approximately 350 Ω |
| Stability |
±2% |
| Cosine Response |
≤±5% (at 10° sun altitude angle) |
| Temperature Characteristic |
±2% (-20℃ to +40℃) |
| Nonlinear |
±2% |
| Testing Range |
0–2000 W/m² |
| Signal Output |
0–20 mV |
Cooling & Control Systems
Fan cooling system maintains temperature at 50±10℃ with PID automatic temperature compensation control. Controller: Mitsubishi.
Data Acquisition & Processing
Data collector captures irradiation sensor and temperature sensor data at ≤5 s intervals via analog signal transfer. Data is processed, analyzed, and calculated before being presented to users as data and curves, then stored in the database.
System Special Functions
- System protection functions: current overload protection, temperature overload protection, leakage electric protection
- Cut-off power memory function: testing continues after power recovery
- System supports Chinese and English language interface switching
- Data storage, history information query, data export/print capabilities
- Reports can be saved in Word, Excel, PDF, JPG formats
Environmental Installation Requirements
Running environment: standard lab conditions, temperature 25±2℃, humidity: 60%
Power: Three-phase, 380V, 50Hz, approximately 35KW
Light Source Array Distribution
Single Group Light Source
System Structure
This system is structured on the PV module BBA steady-state sun simulator testing platform, serving the PV module BBA steady-state sun simulator data acquisition and result processing software.

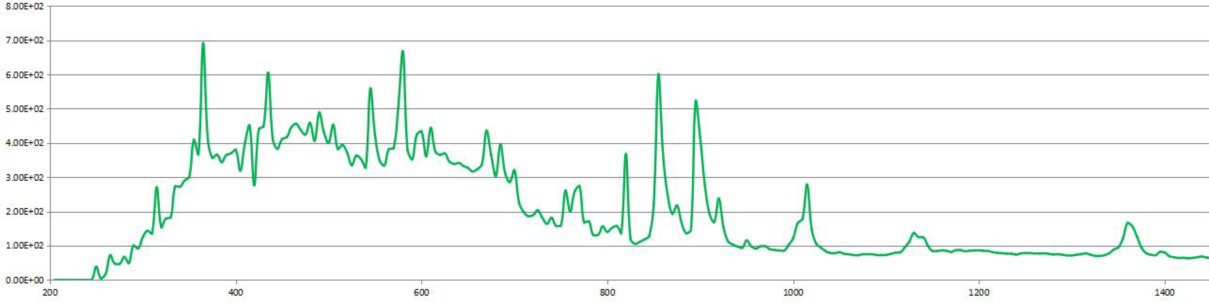

Spectral Curve
