HD Bottle Compression Test Machine Accurate and Paper Packaging Testing Instruments for Control and Performance Tester

Name: HD Bottle Compression Test Machine Accurate and Paper Packaging Testing Instruments for Control and Performance Tester
Brand: HAIDA
Price: 1 USD

Wholesale HD Bottle Compression Test Machine Accurate and Paper Packaging Testing Instruments for Control and Performance Tester from china suppliers

Brand Name : HAIDA

Model Number : 5077-HD

Certification : ISO,CE,

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Capacity : 500kg, imported load cell

Load resolution : 1/250,000

Load Precision : Within ± 0.5%

Motor : 400W Panasonic servo motor

Test Speed : 0.1-500mm/min adjustable

Dimensions : (L*W*H)790 x 610 x 1100mm

Weight : Approx. 170 kg

Power : 1∮, 220V, 500W

Contact Now

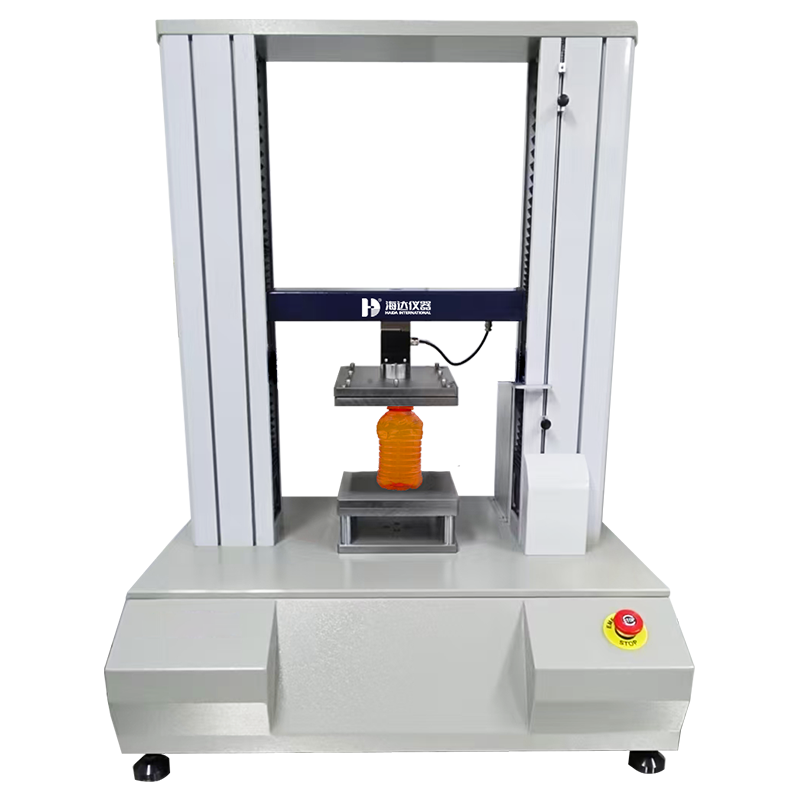

Bottle Compression Test Machine

Description:

Bottle Compression Test Machine is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.

It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.

Test Standards

SO1924/2, QB/T1670-92, GB/T2914, GB/T 453

HD Bottle Compression Test Machine Accurate and Paper Packaging Testing Instruments for Control and Performance Tester

Product Specifications

Model	5077-HD
Capacity	500kg, imported load cell
Load resolution	1/250,000
Load Precision	Within ± 0.5%
Motor	400W Panasonic servo motor
Operation Mode	Controlled by PC with software, Windows 10 operation
Test Speed	0.1-500mm/min adjustable
Max. Stroke	600mm (excluding fixture)
Test unit	gf/kgf/N/kN/lbf/T
Dimensions	(LWH)790 x 610 x 1100mm
Weight	Approx. 170 kg
Power	1∮, 220V, 500W
